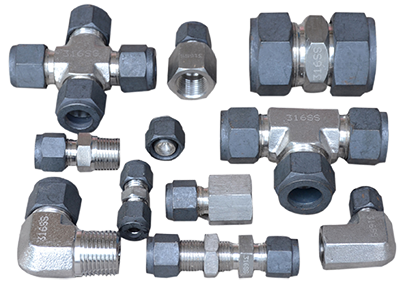

Precision double ferrule compression tube fittings
Meets requirement code of :
- ANSI B31.1 – for power piping
- ANSI B31.3 – for petroleum refineries/chemical plants
- ASME Sec. VIII – for boilers and pressure vessels.
- SAE-J-514 – for wall thickness
Available with :
- NPT, BSP, BSPT, ISO, UNF Threads
- Pipe threads conform to ANSI B2-1
- Straight threads conform to ANSI B 1-1 (unified threads clause 2A & 2B)
Material Of Construction
Straight Fittings – Barstock, ASTM A-276 316 SS/Brass.
Angle Fittings – Barstock, ASTM A-276 316 SS / Forgings, ASTM A-182 G F 316, Brass.
Ferrules – Barstock, ASTM-A-276 316 SS (Minimum Hardness Rockwell B – 90) / PTFE / Brass / Nylon / D
